How to Build an Agentic Workflow, Step by Step

An agentic workflow splits a job into steps that AI agents carry out in order, with a check wherever a mistake would be costly. It suits work that one prompt handles badly: several decisions in sequence, each depending on the last, with rules that must hold every time.

In VDF AI Networks, a workflow is a network: a set of nodes on a canvas, each an agent, a tool call, a check or an approval. This lesson builds one for the service desk. It classifies a ticket, drafts a reply, checks the draft against the desk’s rules and writes the final reply.

Step 1: Write the workflow as numbered steps

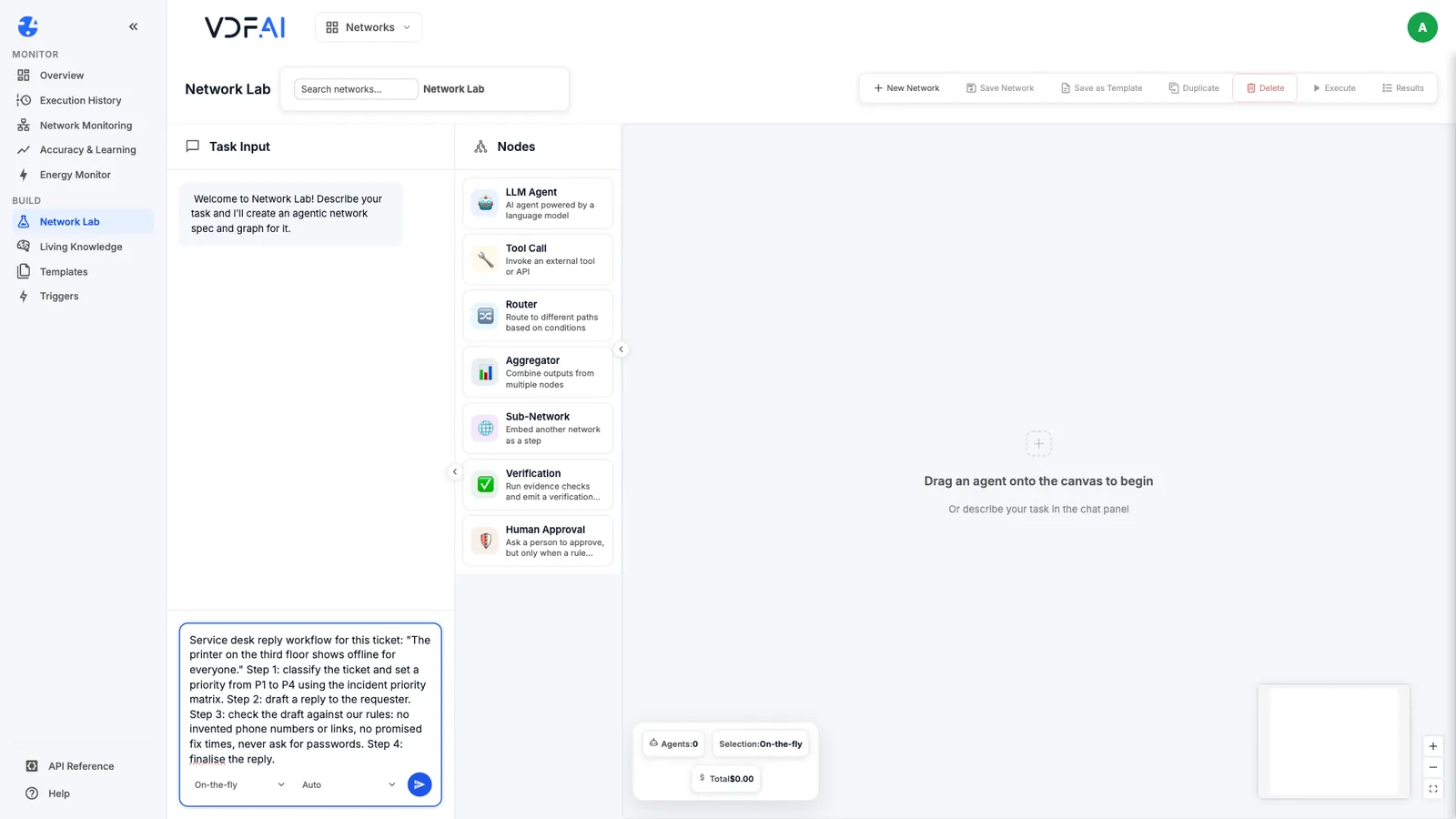

Open Network Lab in VDF AI Networks. The Task Input panel takes a plain-language description and turns it into a network. Write it the way you would brief a colleague: the input, then the steps in order, then the rules.

Service desk reply workflow for this ticket: "The printer on the third
floor shows offline for everyone." Step 1: classify the ticket and set a
priority from P1 to P4 using the incident priority matrix. Step 2: draft a
reply to the requester. Step 3: check the draft against our rules: no
invented phone numbers or links, no promised fix times, never ask for
passwords. Step 4: finalise the reply.

Below the box, two settings shape the plan. Agent selection decides where each step’s agent comes from: Hybrid (the default) reuses agents from Agents Hub where they fit and builds the rest, From Agents Hub uses only existing agents, and On-the-fly builds every agent for this task. Choose On-the-fly for a first design; the next lesson brings in agents from Agents Hub. Plan depth can stay on Auto.

Step 2: Generate the network

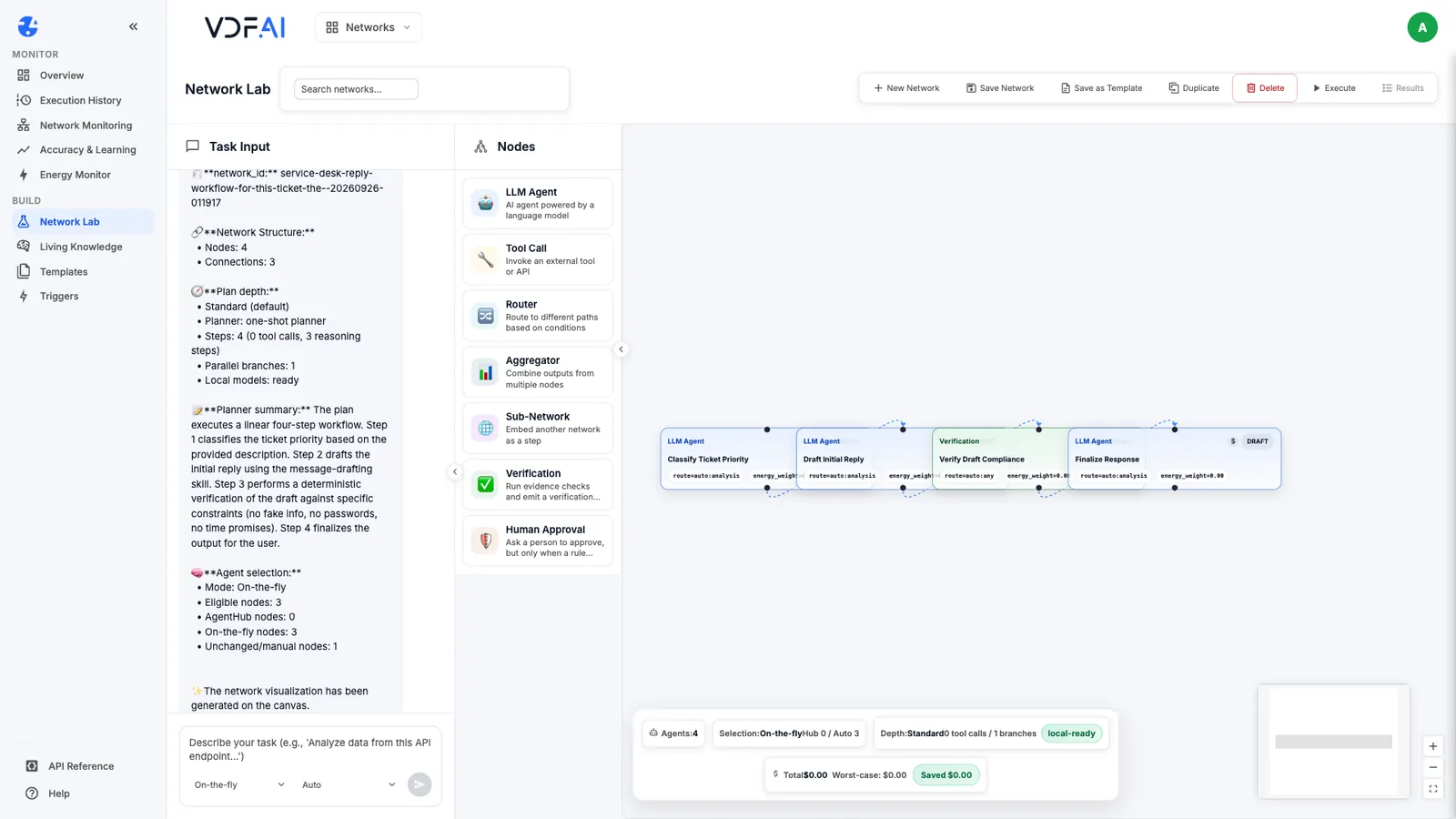

Send the description. In our runs the plan arrived in under half a minute, with a summary in the Task Input panel: four nodes and three connections, a Standard plan with no tool calls, and a planner summary explaining each step.

Read the planner summary before anything else. It is the planner’s own account of what it understood, and it is the quickest place to spot a misread instruction. Here it describes the four steps in order and notes that no external tools are needed, because everything the workflow needs is in the ticket.

Step 3: Review the steps on the canvas

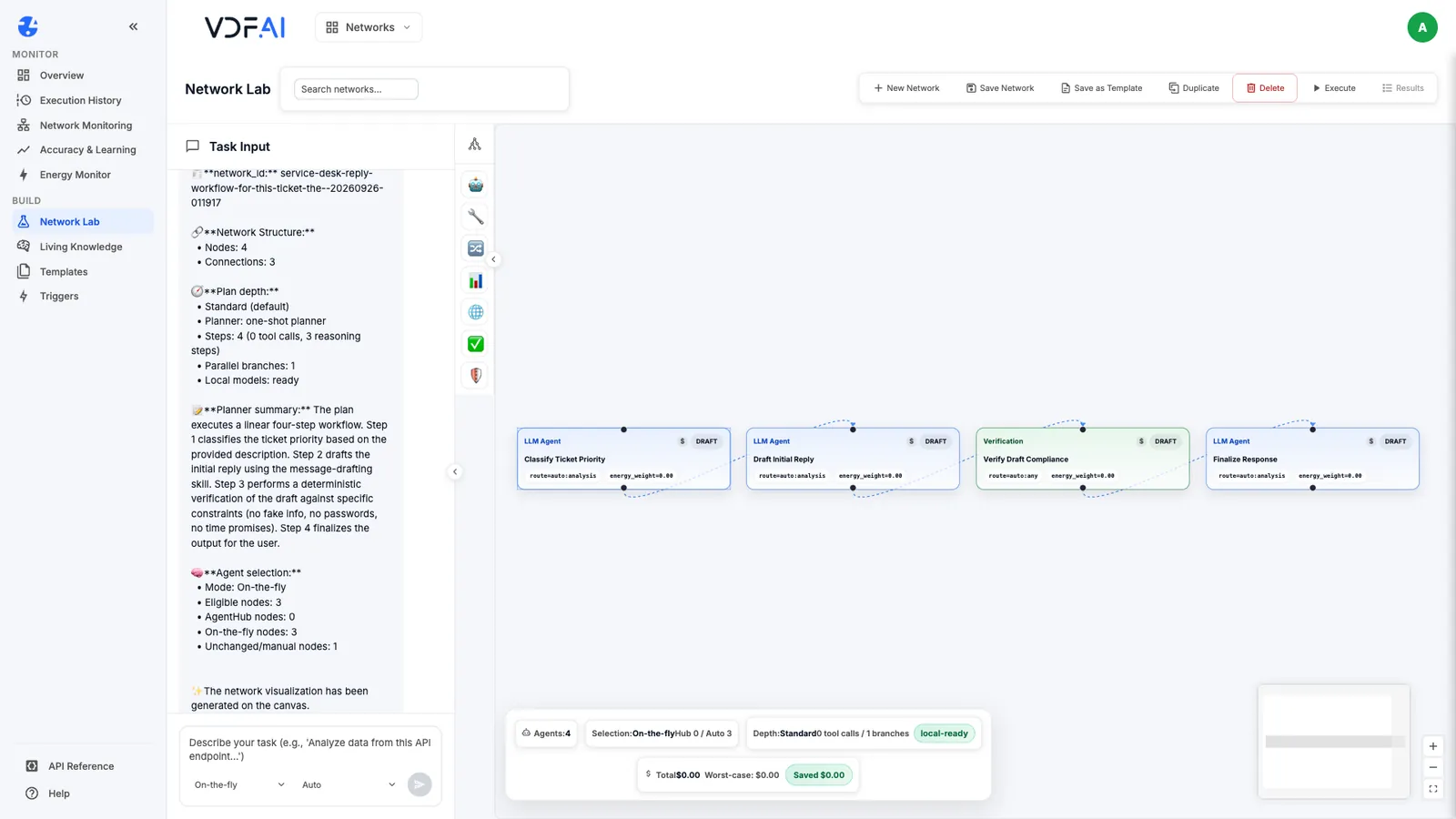

The canvas shows the steps as nodes joined in order: Classify Ticket Priority, Draft Initial Reply, Verify Draft Compliance and Finalize Response. Generated cards can overlap; drag them apart so each one is readable, and collapse the node palette for more room.

The rules from Step 1 became a node of their own, a Verification step. Open it and choose Edit to see its configuration. In one of our generated networks it held a single check:

{
  "checks": [
    {
      "check_id": "llm_judge_check",
      "kind": "llm_judge",
      "severity": "warning",
      "source_nodes": ["draft_reply"],
      "config": {
        "criteria": "Check the drafted reply against strict service desk rules: no invented phone numbers/links, no promised fix times, and no requests for passwords."
      }
    }
  ],
  "pass_threshold": 1,
  "on_fail": "warn"
}

A verification step can also run evidence_grounding, required_fields, json_schema, regex and tool checks. Its on_fail setting decides what happens when a check fails: warn, halt or repair. The generated default is warn. Change it to halt when a failed check must stop the reply from going out.

Step 4: Pin a model for each step

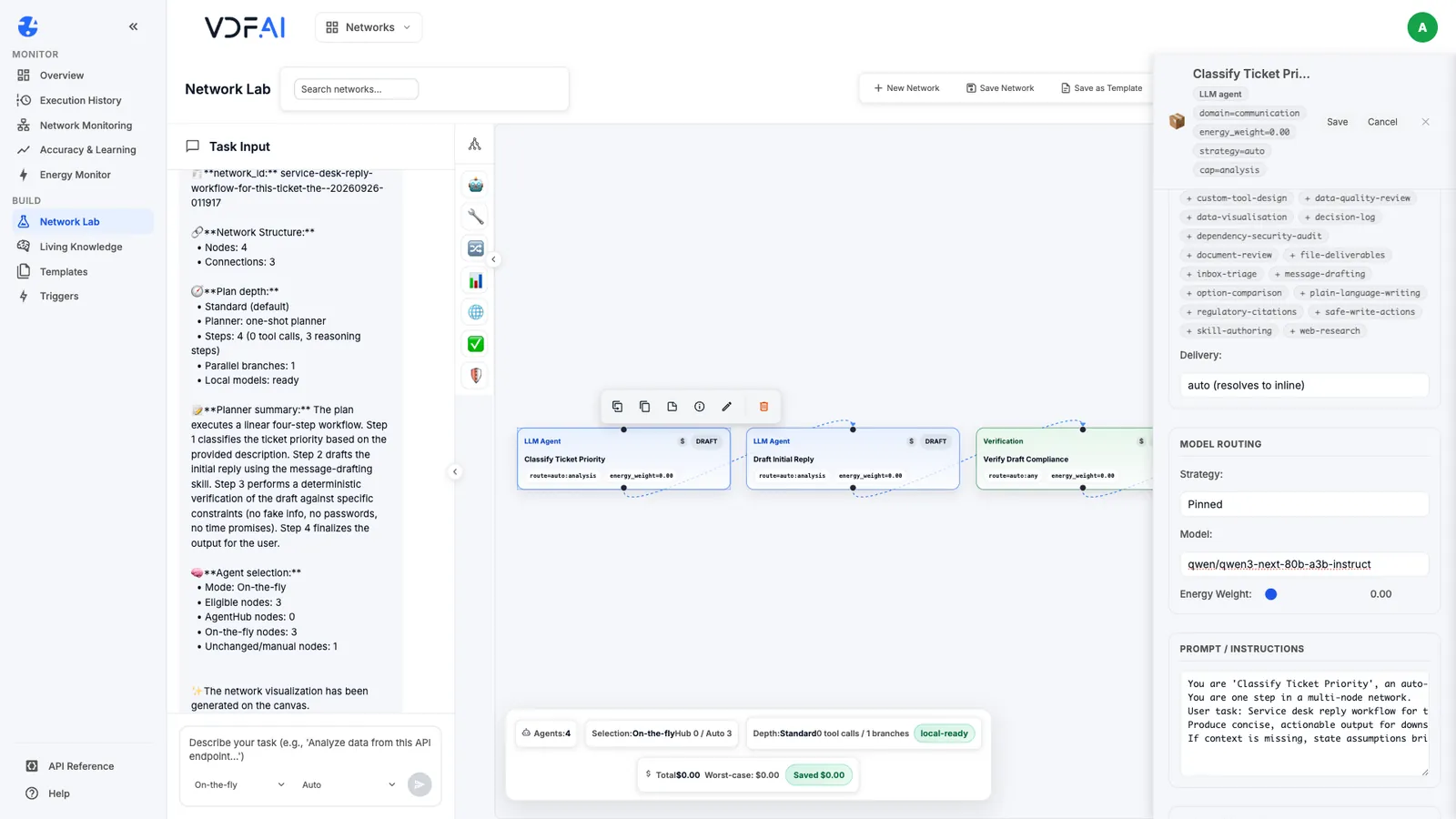

Select a step and choose Edit. The editor covers the step’s type and source, its agent, its skills, its instructions and, under Model routing, how its model is chosen: Auto, Pinned, Capability, Energy or Regulated.

While you design, choose Pinned and enter a model, then Save the step. We pinned all four steps to the same instruction model. With every step pinned, each run uses the same models, so any change in the output comes from a change you made. The routing lesson in this path covers when to unpin and let the platform choose.

Step 5: Save a version

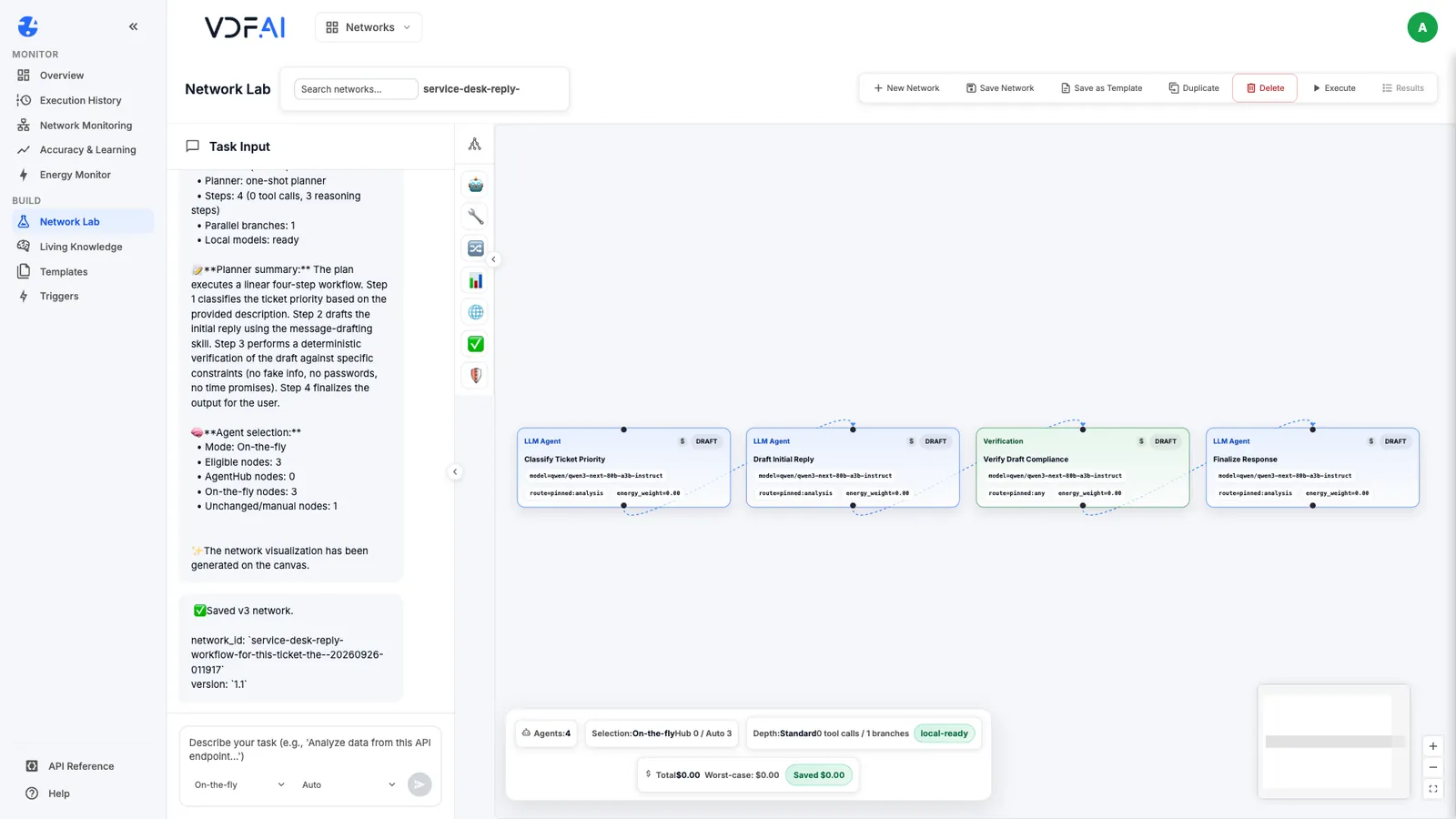

Choose Save Network. Our first save recorded version 1.1, and the cards now show the pinned model on every step.

Save after every change you want to keep. A version number on each save means you can always say which design produced which run.

Step 6: Run it and read every step

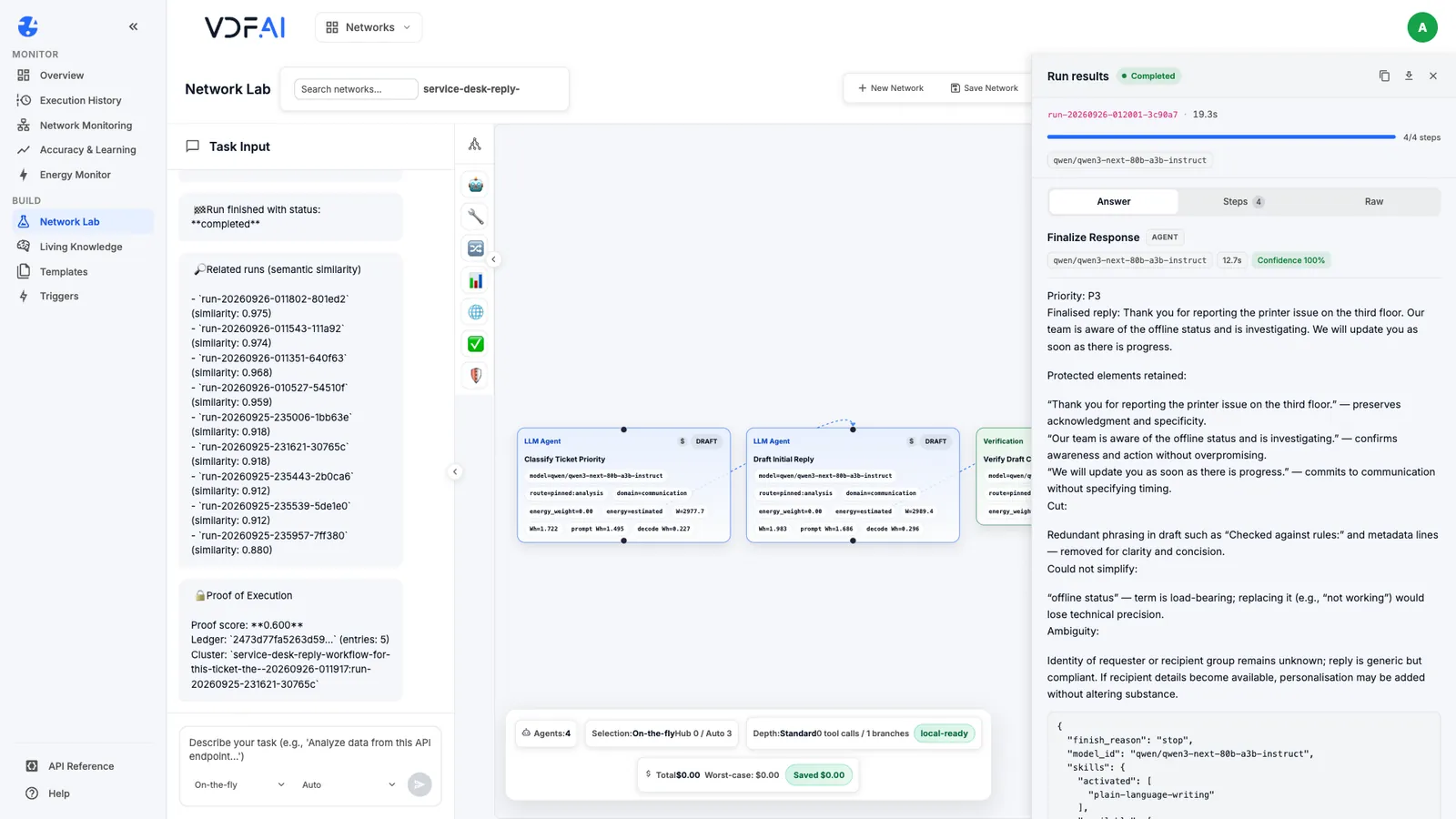

Choose Execute. The Run results panel opens with the run’s status, duration, step count and the models used, and the Answer tab shows the last step’s output.

Our run completed all four steps in 19.3 seconds. The ticket came out as P3, and the final reply read: “Thank you for reporting the printer issue on the third floor. Our team is aware of the offline status and is investigating. We will update you as soon as there is progress.” It invents no contact details, promises no fix time and asks for nothing sensitive. Across our three runs of this workflow every reply kept to the rules, while the wording varied from run to run.

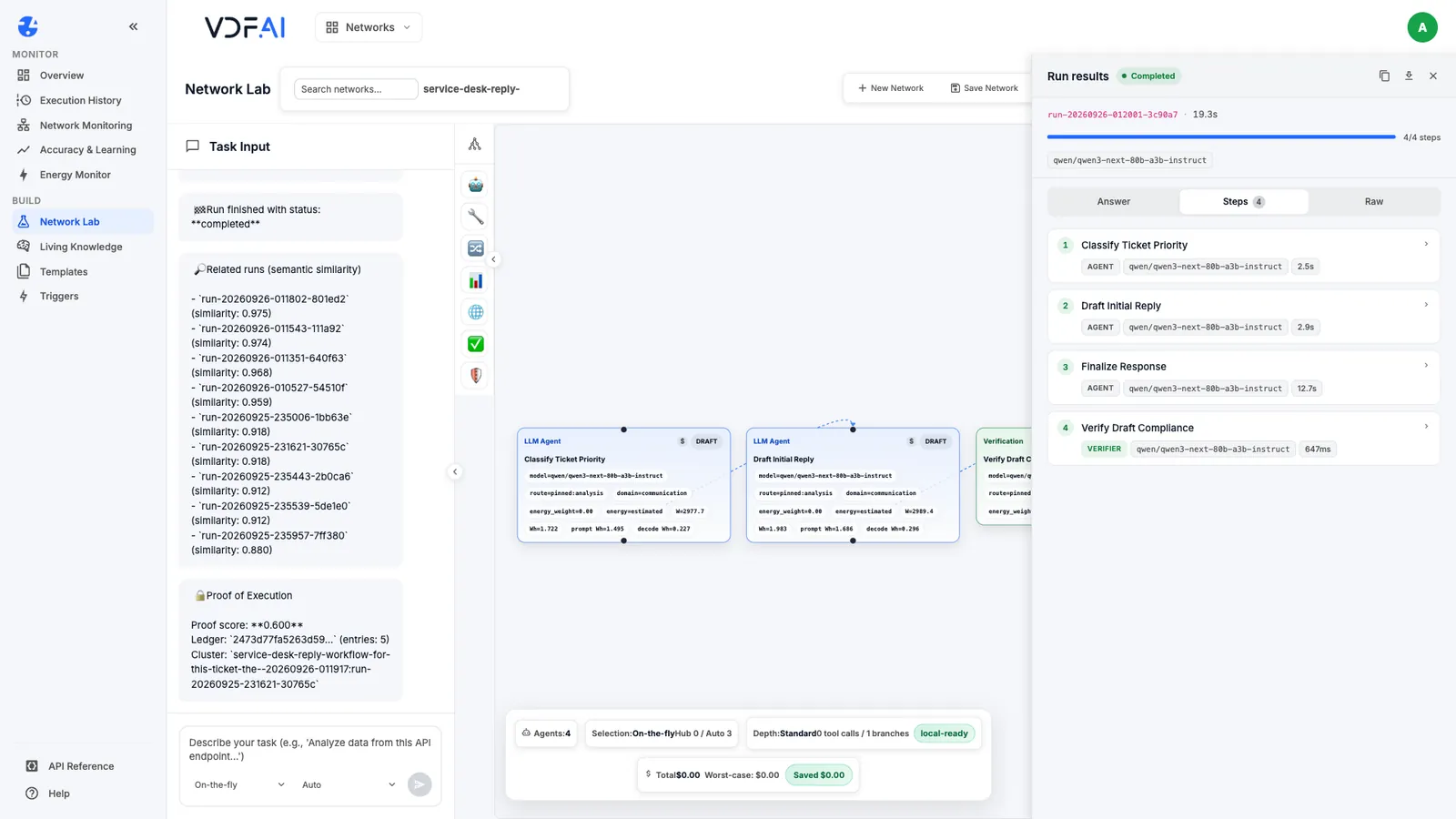

Open the Steps tab to see every step that ran, with its type, model and duration. The verifier is listed with the type VERIFIER, separately from the agents.

Read each step’s output at least once for every new workflow, not only the answer. A final reply can look right while an earlier step got something wrong, such as the priority, that the next ticket will expose.
